PCB Flexible LED Video Wall Curved Flexible LED Display Screen IP68
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Name: | Curved LED Display Screen | Pixel Pitch: | 1.5625,1.73,1.953 |
|---|---|---|---|
| Module Size: | 250mmx250mm | Maximum Bending Angle: | 90 Degree |
| Refresh Rate: | 3840 HZ | Color Depth: | 12 - 16 Bit |
| Highlight: | PCB Flexible LED Video Wall,Flexible LED Video Wall Curved,Flexible LED Display Screen IP68 |
||
Product Description

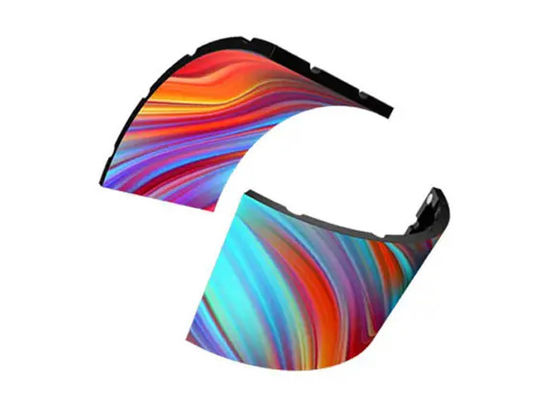

Flexible LED Video Wall LED Display Screen Flexible Indoor Curved
Multiple Curves
The flexible LED module uses soft type material, which makes it possible to be folded into multiple curves or angles.
The smallest diameter of a round LED display is only 480mm(1.57'). And 5 modules could be made into a mini circle.
Reliable Display Performance
Even when the LED module is shaped into an irregular display configuration, the components on the PCB remain stable.
Smooth Surface
The smooth surface of the FL Series modules allows for:
Flat, Concave, Convex, S Shape screen construction.
Superior Resolution
The PREMTECO FL Series P1.9 and P2.5 are industry setting, superior display resolutions.
Slim Shape
The thickness of the module is only 30mm. There are various kinds of shapes to fit projects. We could also make double face flexible LED display as well, and its thickness is only 130mm.
IP68 Rated
The P3.8 outdoor is manufactured with an IP68 humidity and dustproof rating.
Application Fields
In order to fit each different scene, the flexible LED display is made up of superior quality materials with the cocise and strong cabinet. This product is usually used in:
Stages
Exhibition events
Shopping centers
| Item | P1.5 | P1.7 | P1.9 |
|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.736mm | 1.953mm |
| Led Type | SMD1010 | SMD1010 | SMD1515 |
| Module Resolution | 160dots x 160dots | 144dots x 144dots | 128dots x 128dots |
| Driving Mode | 1/32 Scan | 1/29 Scan | 1/32 Scan |
| Pixel Density | 409,600dots | 331,776dots | 262,144dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | Customized | Customized | Customized |
| Minimum Viewing Distance | ≥1.5m | ≥1.7m | ≥1.9m |
| Brightness | 600nits ~ 800nits | 600nits ~ 800nits | 800nits |
| IP Grade | IP41/IP40 | IP41/IP40 | IP41/IP40 |
| Refresh Rate | ≥3,840HZ | ≥3,840HZ | ≥3,840HZ |
| Gray Scale | 12bits ~ 16bits | 12bits ~ 16bits | 12bits ~ 16bits |
| Viewing Angle | H:130°/V:130° | H:130°/V:130° | H:130°/V:130° |
| Maxmum Power Consumption | 720W/sqm | 640W/sqm | 618W/sqm |
| Average Power Consumption | 240W/sqm | 214W/sqm | 206W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Aluminum | Aluminum | Aluminum |
| Module Weight | 1.1kg | 1.05kg | 1kg |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
