500x500mm Rental Led Display Column Hd P1.3 P1.5
Product Details:
| Place of Origin: | China |
| Brand Name: | AlisenLED/OEM/ODM |
| Certification: | CE/FCC/CB/IECEE |
| Model Number: | ATEC 1.3,1.5,1.95,2.6mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotionable |
|---|---|
| Price: | negotionable |
| Packaging Details: | flightcase |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000SQM/Month |
|
Detail Information |
|||
| LAMP: | SMD1515 | Pixel Pitch: | 1.3mm,1.5mm,1.9mm,2.6mm |
|---|---|---|---|
| Cabinet Size: | 500mm X 500mm | Brightness: | 1000 Nits |
| Ave. Power Consumption: | <200 W | Gray Scale: | 22 Bit |
| Water Proof: | IP40 Indoor | View Angle: | 170 ° | 170 ° |
| Concave/convex: | 30 Degree | Column: | 12cabinets Can Join The Column(round) |
| Curved: | ARC Seamlessly | Warranty: | 3 Year |
| Highlight: | p1.3 rental led display,hd 1.5mm rental led display,500x500mm led display screen rental |
||
Product Description

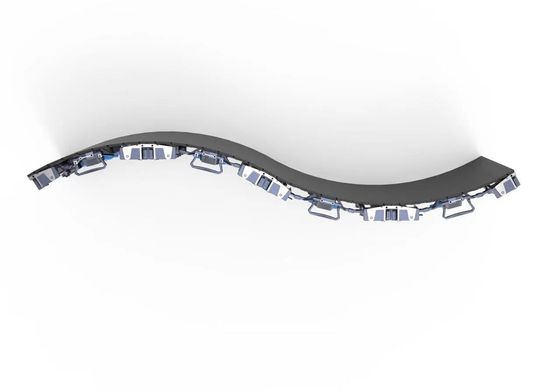

GOB Curved Arc Rental LED Display Screen Indoor Creative LED AUTO Show,EXIBITION
Product Description
- Indoor LED Rental display-GOB1.3,GOB1.9, GOB2.6, GOB2.9
- Adop revolutionary flexible GOB technology
- The inner arc and outer arc can reach ± 30 radians.
- Perfect Mix And Usage
- Can be produced same specification with vertical and floor led display
Product Features:
- Cabinet size:500X500mm
- Adjust curve concave/convex:30 degree
- 16-20bit color grey scale
- ultra light&ultrathin only 6.2kgs/panel
- Fast: One key solution
- 12panels join one column together
- can be use rental ,concert ,AUTO Show. TV Station,XR Stage
Specification
| Pixel Pitch | 1.3 mm | 1.56 mm | 1.95 mm | 2.6 mm |
| LED Configuration | GOB | GOB | GOB | GOB |
| Module Resolution( W x H ) | 192x192 | 160x160 | 128x128 | 96x96 |
| Module Dimension ( W x H ) | 250x250 mm | 250x250 mm | 250x250 mm | 250x250 mm |
| Panel Resolution ( W x H ) | 384x384 | 320x320 | 256x256 | 192x192 |
| Panel Dimensions | 500x500x74mm (Arc Screen) | 500x500x74mm (Arc Screen) | 500x500x74mm (Arc Screen) | 500x500x74mm (Arc Screen) |
| Panel Weight (Kg) | 6.2 Kg (Arc Screen) | 6.2 Kg (Arc Screen) | 6.2 Kg (Arc Screen) | 6.2 Kg (Arc Screen) |
| Single Pixel Calibration | YES | YES | YES | YES |
| Brightness (㎡) | 1000 Nits ( 6500 K Color Temperature ) | 1000 Nits ( 6500 K Color Temperature ) | 1000 Nits ( 6500 K Color Temperature ) | 1000 Nits ( 6500 K Color Temperature ) |
| Color Temp. | 3000 ~ 10000 K | 3000 ~ 10000 K | 3000 ~ 10000 K | 3000 ~ 10000 K |
| Contrast |
≥ 7000 : 1
|
≥ 7000 : 1 | ≥ 7000 : 1 | ≥ 7000 : 1 |
| Viewing Angle(50% brightness) | 170 ° Horizontal, 170° Vertica | 170 ° Horizontal, 170° Vertica | 170 ° Horizontal, 170° Vertica | 170 ° Horizontal, 170° Vertica |
|
Power Consumption(Avg/㎡)
|
≤ 200 W | ≤ 200 W | ≤ 200 W | ≤ 200 W |
|
Refresh Rate
|
≥ 3840 Hz | ≥ 3840 Hz | ≥ 3840 Hz | ≥ 3840 Hz |
| Frame Rate |
50/60/100/120/240 Hz
|
50/60/100/120/240 Hz | 50/60/100/120/240 Hz | 50/60/100/120/240 Hz |
| Gray Scale | 22 Bit | 22 Bit | 22 Bit | 22 Bit |
|
Storage Temp/Humidity
|
-20℃~60℃/10~85% | -20℃~60℃/10~85% | -20℃~60℃/10~85% | -20℃~60℃/10~85% |
|
IP Grade
|
IP40 Indoor | IP40 Indoor | IP40 Indoor | IP40 Indoor |
|
Certifications
|
CE, ETL, FCC | CE, ETL, FCC | CE, ETL, FCC | CE, ETL, FCC |
|
Operation Voltage )
|
AC100 - 240 V (50 - 60 Hz | AC100 - 240 V (50 - 60 Hz | AC100 - 240 V (50 - 60 Hz | AC100 - 240 V (50 - 60 Hz |
Application
-
Trade Shows and Exhibitions
-
Sports Events
-
Stage Performance
-
Corporate Events
-
Retail Environments
Package and delivery
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
Q5. How about your delivery time?
A: Generally, it will take 25-35 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q6:How about your Warranty Term?
Q6:How about your Warranty Term?
A: 3-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
