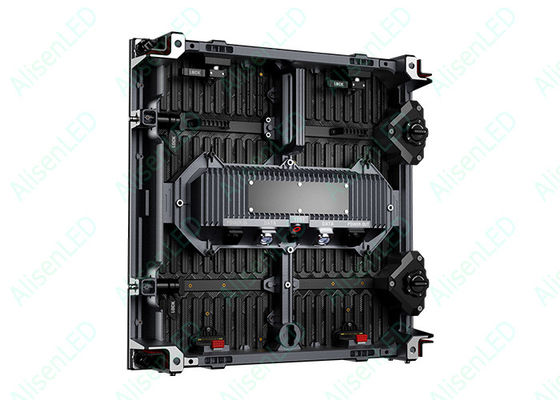

RGB P1.5 Indoor LED Rental Display Anticollision Rental LED Video Wall
Product Details:
| Place of Origin: | China |
| Model Number: | IREN-P2.6-500X500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 25 Working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | IREN P2.6 Indoor LED Display 500mmx500mm Cabinet | Pixel PItch: | P1.9, P2.6, P2.9, 3.91 |
|---|---|---|---|
| Brightness: | > 800nits | Color: | RGB Full Color |
| Cabinet Material: | Die-Casting Aluminum | Application: | Indoor Or Outdoor |
| Curved Lock: | Yes | Cabinet Size: | 500mm X 500mm |
| Module Size: | 250mm X 250mm | Refresh Rate: | > 3840 HZ |
| Highlight: | P1.5 Indoor LED Rental Display,RGB Indoor LED Rental Display,Anticollision Rental LED Video Wall |
||
Product Description
P1.5 Indoor LED Rental display Rental LED Video Wall
Control System
Brompton Or NovaStar System Supported.
Secure And Strong Arc Lock
- Putting connectors down is for easier pulling out and inserting in.
- Testing button is to test the panel before building up the screen.
- Strong locking system and curved design are available. It can be designed to be curved to form a curved screen from -6°(convex) to +6°(concave).
Excellent Protection Gadgets
A “L” shape steel plate on each corner can be turned into the proper direction to raise the modules. This smart design can help protect the LED when the panel hits the ground.
By adopting high tech GOB(P1.9) technology, the screen is waterproof and anti-collision.
We use the innovative “AOB” technology to reinforce the soldering connection between LED and PCB board. So the LED won’t be broken easily.
Fast Ground Stacking Setup
We can hang up the cabinet by fly bar with a truss system and also quickly install the cabinet on the ground with the clamp set and the ground stand system. That is very convenient for the functions such as sports events and exhibition.
Brilliant Visual Performance
LED signage always quickly captures the audience's attention and provides unforgettable visual experience for the viewers. Meanwhile, using black LED will increase the color contrast of the screen.
Ultimate Refresh Rate Refresh rate of IR1 PRO LED video wall can be up to 3,840Hz
Excellent Gray Scale Gray Scale of this kind of LED panel can be (13bits-24bits)
Compatible Regular Truss
Regular truss works for stacking, no custom truss needed.
Application compatible with scenes
- Conference
- Exhibition
- Training
- Stage Performance
- Office Work
- Curved Wall
- Curved Design
- Round Shape
| Item | P1.9 | P2.6 | P2.9 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm |
| Led Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module Resolution | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/32 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Module Pixels | 16,384 dots | 9,216 dots | 7,056 dots | 4,096 dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm |
| Cabinet Resolution | 256dots x 256dots | 192dots x 192dots | 168dots x 168dots | 128dots x 128dots |
| Pixel Density | 262,144 dots/sqm | 147,456 dots/sqm | 112,896 dots/sqm | 65,536 dots/sqm |
| Minimum Viewing Distance | ≥1.9 m | ≥2.6 m | ≥2.9 m | ≥3.9 m |
| Brightness | 800nits ~ 1200nits | 800nits ~ 1200nits | 800nits ~ 1200nits | 800nits ~ 1200nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ |
| Gray Scale | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits |
| Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° |
| Maxmum Power Consumption | 560W/sqm | 560W/sqm | 560W/sqm | 560W/sqm |
| Average Power Consumption | 160W/sqm | 160W/sqm | 160W/sqm | 160W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
