MOQ: | Negotionable |
Price: | negotionable |
Standard Packaging: | flightcase or Wooden case |
Delivery Period: | 7-30 Working days |
Payment Method: | L/C, D/A, D/P, T/T, Western Union |
Supply Capacity: | 1000SQM/Month |

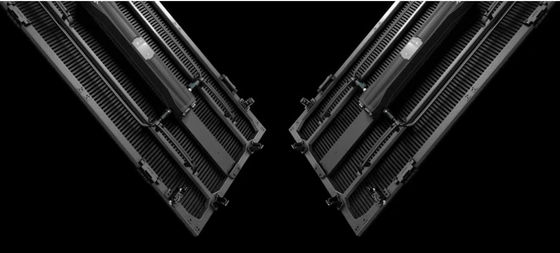

The Carbon 6.9MM product comprises lightweight LED panels designed for rapid construction of large LED walls. These carbon-based panels feature convenient hanging or stacking options, along with touring frames and transport dollies, making them an ideal choice for touring applications. With the ability to be configured in both flat and curved layouts, these LED panels are suitable for both indoor and outdoor use
Feature:
Application:
Transparent carbon fiber rental LEDscreen-CTR | ||||
MODEL | CTR5.68 | CTR6.9 | CTR7.8 | CTR10.4 |
Pixelpitch (mm) | 5.68 | 6.9 | 7.81 | 10.4 |
LEDmodel | SMD1921 | SMD 1921 | SMD1921 | SMD3535 |
Module size(mm) | 500X250mm | 250x125 | 250 x125 | 250x125 |
Module resolution(W xH) | 88x44 | 36 x18 | 32 x16 | 24x12 |
Cabinetsize(WxHxD) | 500x1000x19mm | 500 x1000x65 | 500 x1000x65 | 500 x 1000x65 |
Cabinet resolution(W xH) | 88x176 | 72 x144 | 64x128 | 48x96 |
Pixeldensity(pixels/㎡) | 30976 | 20736 | 16384 | 9216 |
Brightness(cd/㎡) | 5000-6000 | 4500 | 4500 | 5000 |
Maxpowerconsumption(w/㎡) | 700 | 800 | 800 | 800 |
Average power consumption | 233 | 240 | 240 | 240 |
Transparent | 30% | 35% | 40% | 45% |
Weight(kg/㎡) | 9 | 14 | 14 | 14 |
Horizontal viewing angle | 140° | |||
Vertical viewing angle | 120° | |||
Gray scale | 14bit | |||
Refresh rate(Hz) | 3840 | |||
Frame frequency(Hz) | 50/60Hz | |||
Color temperature(K) | 6500K | |||
Input voltage(V) | 100~240V AC, 50~60Hz | |||
Operating temperature | -20to50. | |||
Storage temperature | -40to80. | |||
Operating humidity | 10% to80% | |||
Life span oflamp(hours) | 100,000 | |||
Angle of curve | -12.~+15. | |||
Level of protection | IP65 |
Mounting Methods:
The intelligent modules store calibrating and operating parameters separately. The tiles can be quickly set up, making them ideal for cutting labor costs and making them an affordable option for your next production presentation, product launch, trade show or special event.
FAQ:
Q1: Do you have patent for this type Carbon firbe?
A1:Yes, we have.
Q2: Do you have control the raw material and process of production?
A2.:Yes,
Quality is our top priority. We pay great attention to quality control from the beginning to the end. We focus on every detail, and our factory has obtained ISO9001, ISO14001, CE, RoHS, and FCC certifications.
Q3: Does Alisen LED provide technical support for customers?
A6:We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
Q4:Can I pay in a currency other than Euro?
A4:We quote and accept payment in any currency. No hidden fees and no mark up on any exchange rate!
Q5. How is the quality of Alisen LED displays ensured?
A5:Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality.
Q6: What is your warranty time?
A6, To be honest, Generaly it is 3-5years with our this High quality Carbon firbe products. we use Nationstar SMD, KB Board PCB ,Selceting the best raw materials to do to keep our products is high quality and durability. Netric Connetors.
