| MOQ: | Negotiable |
| Price: | Negotiable |
| Standard Packaging: | WoodenCase |
| Delivery Period: | 25 Working days |
| Payment Method: | T/T |
Indoor And Semi-Outdoor Transparent LED Display Screen HD Video Digital Signage
Transparency of our T1 series transparent LED display is up to 52% or even 82%, which offers a range of creative applications for the live event and installation market.
Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.
Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.
Ecnomical and Eco-friendly
The power consumption is 1/3 lower than normal screen.
80mm cabinet thickness and 4.3kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.
Standard & Customized Casbinet Design
Standard cabinet design 1,000mm x 500mm brings easier installation. Meanwhile, the customized design is available.

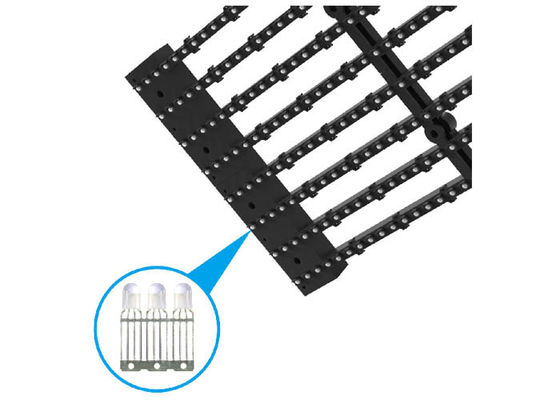

The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.
Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.
Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.
| Item | P1.9 | P2.6 | P2.9 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm |
| Led Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module Resolution | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/32 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Module Pixels | 16,384 dots | 9,216 dots | 7,056 dots | 4,096 dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm |
| Cabinet Resolution | 256dots x 256dots | 192dots x 192dots | 168dots x 168dots | 128dots x 128dots |
| Pixel Density | 262,144 dots/sqm | 147,456 dots/sqm | 112,896 dots/sqm | 65,536 dots/sqm |
| Minimum Viewing Distance | ≥1.9 m | ≥2.6 m | ≥2.9 m | ≥3.9 m |
| Brightness | 800nits ~ 1200nits | 800nits ~ 1200nits | 800nits ~ 1200nits | 800nits ~ 1200nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ |
| Gray Scale | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits |
| Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° |
| Maxmum Power Consumption | 560W/sqm | 560W/sqm | 560W/sqm | 560W/sqm |
| Average Power Consumption | 160W/sqm | 160W/sqm | 160W/sqm | 160W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
|
|
