Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet

Name: Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet
Brand: AlisenLED/OEM/ODM
SKU: ATEC 1.3,1.5,1.95,2.6mm
Rating: 4.6 (161 reviews)

MOQ:	Negotionable
Price:	negotionable
Standard Packaging:	flightcase
Delivery Period:	25-30days
Payment Method:	T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	5000SQM/Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

AlisenLED/OEM/ODM

Certification

CE/FCC/CB/IECEE

Model Number

ATEC 1.3,1.5,1.95,2.6mm

LAMP:

SMD1515

Pixel Pitch:

1.3mm,1.5mm,1.9mm,2.6mm

Cabinet Size:

500mm X 500mm

Brightness:

1000 Nits

Ave. Power Consumption:

<200 W

Gray Scale:

22 Bit

Water Proof:

IP40 Indoor

View Angle:

170 ° | 170 °

Concave/convex:

30 Degree

Column:

12cabinets Can Join The Column(round)

Curved:

ARC Seamlessly

Warranty:

3 Year

Highlight:

smd1515 hd rental led display

500mm x 500mm cabinet hd rental led display

smd1515 p1.9 led screen rental

Product Description

gob curved arc rental flexible seamlessly led display screen indoor creative led auto show,exibition

Product Description

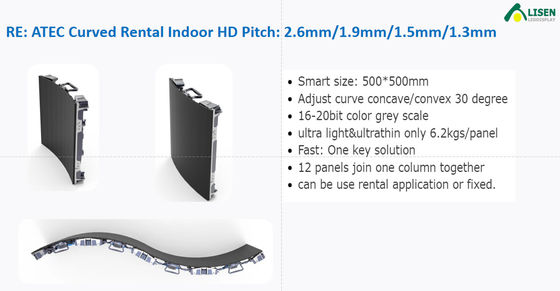

Indoor LED Rental display-GOB1.3,GOB1.9, GOB2.6, GOB2.9
Adop revolutionary flexible GOB technology
The inner arc and outer arc can reach ± 30 radians.
Perfect Mix And Usage
Can be produced same specification with vertical and floor led display

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet 1

Product Features:

Cabinet size:500X500mm
Adjust curve concave/convex:30 degree
16-20bit color grey scale
ultra light&ultrathin only 6.2kgs/panel
Fast: One key solution
12panels join one column together
can be use rental ,concert ,AUTO Show. TV Station,XR Stage

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet 2

Specification

Pixel Pitch	1.3 mm	1.56 mm	1.95 mm	2.6 mm
LED Configuration	GOB	GOB	GOB	GOB
Module Resolution( W x H )	192x192	160x160	128x128	96x96
Module Dimension ( W x H )	250x250 mm	250x250 mm	250x250 mm	250x250 mm
Panel Resolution ( W x H )	384x384	320x320	256x256	192x192
Panel Dimensions	500x500x74mm (Arc Screen)	500x500x74mm (Arc Screen)	500x500x74mm (Arc Screen)	500x500x74mm (Arc Screen)
Panel Weight (Kg)	6.2 Kg (Arc Screen)	6.2 Kg (Arc Screen)	6.2 Kg (Arc Screen)	6.2 Kg (Arc Screen)
Single Pixel Calibration	YES	YES	YES	YES
Brightness (㎡)	1000 Nits ( 6500 K Color Temperature )	1000 Nits ( 6500 K Color Temperature )	1000 Nits ( 6500 K Color Temperature )	1000 Nits ( 6500 K Color Temperature )
Color Temp.	3000 ~ 10000 K	3000 ~ 10000 K	3000 ~ 10000 K	3000 ~ 10000 K
Contrast	≥ 7000 : 1	≥ 7000 : 1	≥ 7000 : 1	≥ 7000 : 1
Viewing Angle(50% brightness)	170 ° Horizontal, 170° Vertica	170 ° Horizontal, 170° Vertica	170 ° Horizontal, 170° Vertica	170 ° Horizontal, 170° Vertica
Power Consumption(Avg/㎡)	≤ 200 W	≤ 200 W	≤ 200 W	≤ 200 W
Refresh Rate	≥ 3840 Hz	≥ 3840 Hz	≥ 3840 Hz	≥ 3840 Hz
Frame Rate	50/60/100/120/240 Hz	50/60/100/120/240 Hz	50/60/100/120/240 Hz	50/60/100/120/240 Hz
Gray Scale	22 Bit	22 Bit	22 Bit	22 Bit
Storage Temp/Humidity	-20℃~60℃/10~85%	-20℃~60℃/10~85%	-20℃~60℃/10~85%	-20℃~60℃/10~85%
IP Grade	IP40 Indoor	IP40 Indoor	IP40 Indoor	IP40 Indoor
Certifications	CE, ETL, FCC	CE, ETL, FCC	CE, ETL, FCC	CE, ETL, FCC
Operation Voltage )	AC100 - 240 V (50 - 60 Hz	AC100 - 240 V (50 - 60 Hz	AC100 - 240 V (50 - 60 Hz	AC100 - 240 V (50 - 60 Hz

Application

Trade Shows and Exhibitions
Sports Events
Stage Performance
Corporate Events
Retail Environments

Smd1515 Hd Rental Led Display P1.9 P2.6mm 500mm X 500mm Cabinet 4

Package and delivery

FAQ

Q1: What is the control system? How is it?

A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.

Q2: Can I have a sample order for led screen?

A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.

Q3:Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: What is your best service?

1: One to one sales engineer to customer responsibility system;

2. Know your project and provide the best solution for it;

3. Track your order and let you know each step and detail of it;

4. Teach you how to install and use the screen;

5. Care the subsequent use of your screen and ensure your after - sales service be well.

Q5. How about your delivery time?

A: Generally, it will take 25-35 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q6:How about your Warranty Term?

A: 3-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
