MOQ: | Negotiable |
Price: | Negotiable |
Standard Packaging: | WoodenCase |
Delivery Period: | 25 Working days |
Payment Method: | T/T |
SMD 10.4x10.4mm Transparent LED Screens With 1000x1000mm Cabinets
Outdoor Transparent LED Screens 10.4x10.4mm SMD 1000x1000mm cabinets Display
Transparency
The LED transparent display has a high transparency rate, allowing viewers to see through the display, which makes it perfect for storefronts and other areas where maintaining visibility is important.
The LED transparent display is designed to be lightweight and slim, which makes it easy to install and transport.
LED transparent displays have high brightness levels, which make them easy to see even in bright sunlight or high ambient light environments.
Item |
P10.4mm |
---|---|
Pixel Pitch |
10.4mm |
Led Type |
SMD3535 |
Module Resolution |
48dots x 12dots |
Driving Mode |
1/2 Scan |
Module Pixels |
9,216 dots |
Module Size |
500mmx125mmx25mm |
Cabinet Size |
1000mm x 1000mm x 85mm |
Cabinet Resolution |
96dots x 96dots |
Pixel Density |
9,126 dots/sqm |
Minimum Viewing Distance |
10meter |
Brightness |
6000 nits |
IP Grade |
IP65/IP65 |
Refresh Rate |
3840HZ |
Gray Scale |
14bits |
Viewing Angle |
H:160°/ V:160° |
Maxmum Power Consumption |
850W/sqm |
Average Power Consumption |
250W/sqm |
Input Voltage |
AC110V ~ AC220V @50/60HZ |
Operating Temperature |
-20℃ ~ 65℃ |
Operating Humidity |
10% ~ 90% |
Cabinet Material |
Die-casting Aluminum |
Cabinet Weight |
19 kg/panel |
Operating System |
Windows(win7,Win8,Win10,etc) |
Signal Source Compatibility |
DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
80mm cabinet thickness and 4.3kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.

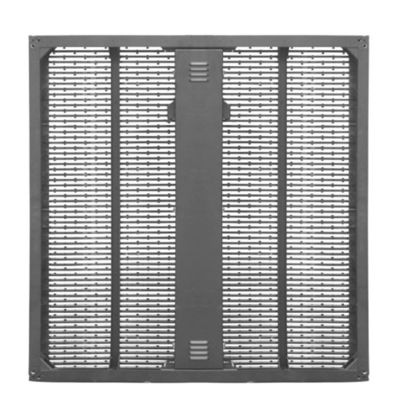

Standard & Customized Casbinet Design
Standard cabinet design 1,000mm x 500mm brings easier installation. Meanwhile, the customized design is available.
The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.
Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.
Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.
Conference
Exhibition
Training
Stage Performance
Office Work
Curved Wall
Curved Design
Round Shape
LED transparent displays consume very little power, which makes them energy-efficient and cost-effective to operate.
The LED transparent display can be customized to fit any size or shape, making it versatile for various applications.
The LED transparent display has a high resolution, which results in a clear and vivid display of images and videos.
LED transparent displays are durable and resistant to damage, ensuring long-term use and minimal maintenance.
