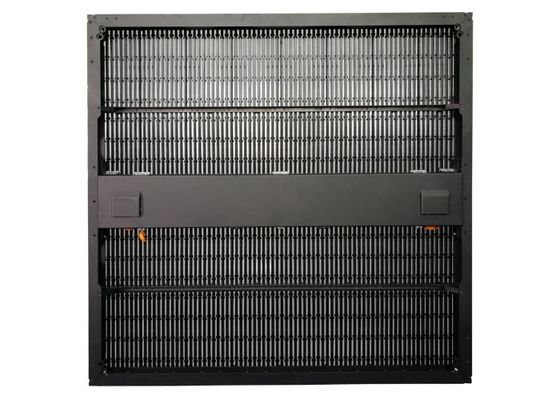

P5.2 - P10.4mm Transparent LED Display Screens video digital signage

P5.2 - P10.4mm Transparent LED Display Screens video digital signage
P5.2 - P10.4mm Transparent LED Display Screens video digital signage P5.2 - P10.4mm Transparent LED Display Screens video digital signage P5.2 - P10.4mm Transparent LED Display Screens video digital signage

Large Image :  P5.2 - P10.4mm Transparent LED Display Screens video digital signage

Product Details:
Model Number: OFIX-P5.2-P10.4-Transparent
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WoodenCase
Delivery Time: 25 Working days
Payment Terms: T/T

P5.2 - P10.4mm Transparent LED Display Screens video digital signage

Description
Name: Outdoor Fixed LED Transparent Display Screen Panel Size: 1000mmx1000mmx80mm
Pixel Pitch: 5.2mm-10.4mm Color: Full Color
Light Transmittance: 30% Pixels Support: 5.2mm-10.4mm
Cabinet Resolution: 192(W)x96(H) Refresh Rate: 3840HZ
Max Power Consumption: 850 W/Sqm
High Light:

P5.2 Transparent LED Screens

,

P10.4 Transparent LED Screens

,

Outdoor HD Display SMD2727

P5.2 - P10.4 Transparent LED Display Screen Outdoor HD Video Digital Signage



High Transparency

Transparency of our T1 series transparent LED display is up to 52% or even 82%, which offers a range of creative applications for the live event and installation market.
Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.



P5.2 - P10.4mm Transparent LED Display Screens video digital signage 0

High Brightness

Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.
Ecnomical and Eco-friendly
The power consumption is 1/3 lower than normal screen.



P5.2 - P10.4mm Transparent LED Display Screens video digital signage 1

Light and Slim

80mm cabinet thickness and 4.3kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.
Standard & Customized Casbinet Design
Standard cabinet design 1,000mm x 1000mm brings easier installation. Meanwhile, the customized design is available.



Modular Design

The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.



Fast and Easy Installation

Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.



Flexibility

Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.



Application Fields

To be adapted for every different scene, our T1 products are made up of superior quality materials with the concise and strong structure. T1 products are usually used in:

  • Museums
  • Shopping malls
  • Exhibition events
  • Retail And Advertising
  • Hospitality and Entertainment
  • Exhibitions and Events
  • Architecture and Design
  • Automotive Industry
  • Museums and Galleries




Item P5.2-P10.4mm
Pixel Pitch 5.2mmx10.4mm
Led Type SMD2727
Module Resolution 12dots x 96dots
Driving Mode 1/4 Scan
Module Pixels 1,152 dots
Module Size 125mm x 500mm
Cabinet Size 1,000mm x 1000mm
Cabinet Resolution 192dots x 96dots
Pixel Density 12,800 dots/sqm
Minimum Viewing Distance ≥12 m
Brightness 6,000nits
IP Grade IP65|IP65
Refresh Rate 3,840HZ
Gray Scale 14bits
Viewing Angle H:160°/ V:160°
Maxmum Power Consumption 850W/sqm
Average Power Consumption 250W/sqm
Input Voltage AC110V ~ AC220V @50/60HZ
Operating Temperature -20℃ ~ 65℃
Operating Humidity 10% ~ 90%
Cabinet Material Aluminum
Cabinet Weight 19 kg/panel
Operating System Windows(win7,Win8,Win10,etc)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
