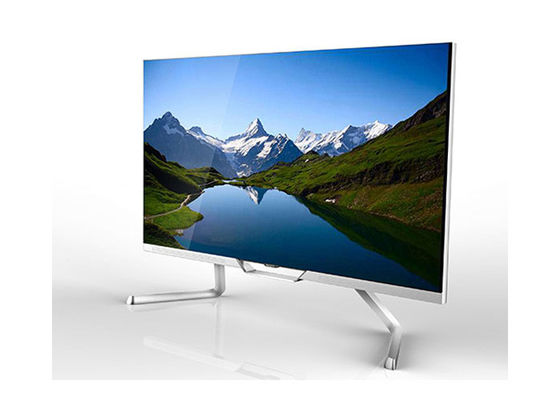

Product Details
Model Number: ACOB
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T
Cabinet Size: |
600mm X 337.5mm |
Brightness: |
450 Nits ~ 800 Nits |
Waterproof: |
IP43 |
Refresh Rate: |
3840HZ |
Max. Power Consumption: |
350 W/Sqm |
Cabinet Material: |
Die-Casting Aluminum |
Cabinet Weight: |
7.3 Kg/Panel |
LED Type: |
COB |
Cabinet Size: |
600mm X 337.5mm |
Brightness: |
450 Nits ~ 800 Nits |
Waterproof: |
IP43 |
Refresh Rate: |
3840HZ |
Max. Power Consumption: |
350 W/Sqm |
Cabinet Material: |
Die-Casting Aluminum |
Cabinet Weight: |
7.3 Kg/Panel |
LED Type: |
COB |
The regular black SMD LED has the color contrast ratio of 5,000:1. However, our high-tech COB LED reaches a much higher color contract ratio up to 10,000:1. The color of our COB LED screen looks amazing.
The screen is gapless. Meanwhile, when we build a LED screen with 2K, 4K, 8K, or some other resolutions, we can still have a 16:9 screen aspect ratio.
We adopt great PCB design and high quality LED material. With the high refresh rate(up to 3,840Hz) and gray scale(up to 14bits to 24bits) , the LED display can bring us amazing visual effects.
The light from our COB LED looks softer to our eyes. Meanwhile, when the COB LED screen is playing videos or images, the visual impact is more exquisite.
When the dust, or other dirt on the LED modules, you can clean it with duster easily. Meanwhile, the LED won't get damaged by slight collision during the installation and transportation.
More than 170 degrees of ultra-wide viewing angle delivers head-turning visual effects. And the power consumption is lower than regular LED display products.
With the innovation technology and years of experience, now we could produce the world’s finest pixel pitch: P0.9 and P0.7. And soon we could do P0.5 or even smaller pitch LED display.
Thanks to the flip chip technology wireless packaging technology, the heat dissipation for the LED is better, thus the LED works more secure. With the unique feature of the COB LED ( great reliability and high level surface protection) , the LED display ensures the perfect performance for more than 8 years.
We adopt the precise die-casting aluminum design, so it is very light weight, which would bring great convenience when we do the installation or transportation. Meanwhile, all components including LED module, power box, receiving card and other accessories can be removed in the front, so it is fully front service design.
| Item | P0.8 | P0.9 | P1.2 | P1.5 |
|---|---|---|---|---|
| Pixel Pitch | 0.83mm | 0.937mm | 1.25mm | 1.5625mm |
| Led Type | COB | COB | COB | COB |
| Module Resolution | 180dots x 67dots | 320dots x 180dots | 240dots x 135dots | 192dots x 108dots |
| Driving Mode | / | 1/45 Scan | 1/45 Scan | 1/54 Scan |
| Module Pixels | 12,060 dots | 576,000 dots | 32,400 dots | 20,736 dots |
| Module Size | 300mm x 168.75mm | 300mm x 168.75mm | 300mm x 168.75mm | 300mm x 168.75mm |
| Cabinet Size | 600mm x 337.5mm x 60mm | 600mm x 337.5mm x 60mm | 600mm x 337.5mm x 60mm | 600mm x 337.5mm x 60mm |
| Cabinet Resolution | 720dots x 402dots | 640dots x 360dots | 480dots x 270dots | 384dots x 216dots |
| Pixel Density | 1,451,890 dots/sqm | 1,137,779 dots/sqm | 640,000 dots/sqm | 409,600 dots/sqm |
| Minimum Viewing Distance | ≥0.8 m | ≥0.9 m | ≥1.2 m | ≥1.5 m |
| Brightness | 450nits ~ 800nits | 450nits ~ 800nits | 450nits ~ 800nits | 450nits ~ 800nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Gray Scale | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits | 13bits ~ 24bits |
| Viewing Angle | H:170°/ V:170° | H:170°/ V:170° | H:170°/ V:170° | H:170°/ V:170° |
| Maxmum Power Consumption | 350W/sqm | 350W/sqm | 350W/sqm | 350W/sqm |
| Average Power Consumption | 100W/sqm | 100W/sqm | 100W/sqm | 100W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.3 kg/panel | 7.3 kg/panel | 7.3 kg/panel | 7.3 kg/panel |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
