Indoor SMD1010 Flexible Curved LED Wall Dustproof Smooth IP40

Product Details

Payment & Shipping Terms

Get Best Price
Highlight:

SMD1010 Curved LED Wall

,

Curved LED Wall Dustproof

,

Flexible LED Wall IP40

Name:
Curved LED Display Screen
Pixel Pitch:
1.5625,1.73,1.953
Module Size:
250mmx250mm
Maximum Bending Angle:
90 Degree
Refresh Rate:
3840 HZ
Color Depth:
12 - 16 Bit
Name:
Curved LED Display Screen
Pixel Pitch:
1.5625,1.73,1.953
Module Size:
250mmx250mm
Maximum Bending Angle:
90 Degree
Refresh Rate:
3840 HZ
Color Depth:
12 - 16 Bit

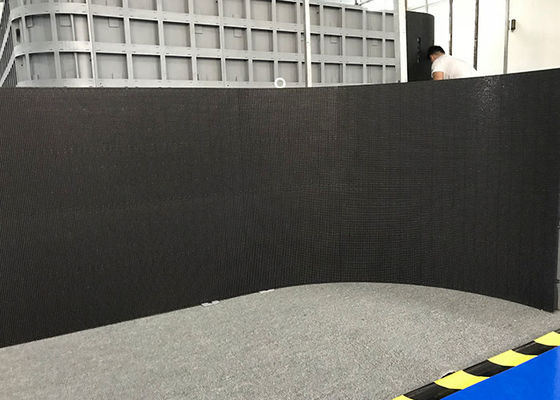

Indoor SMD1010 Flexible Curved LED Wall Dustproof Smooth IP40

Curved LED Display Screen Flexible Indoor Curved LED Video Wall



Multiple Curves

The flexible LED module uses soft type material, which makes it possible to be folded into multiple curves or angles.
The smallest diameter of a round LED display is only 480mm(1.57'). And 5 modules could be made into a mini circle.

Indoor SMD1010 Flexible Curved LED Wall Dustproof Smooth IP40 0



Reliable Display Performance

Even when the LED module is shaped into an irregular display configuration, the components on the PCB remain stable.

Indoor SMD1010 Flexible Curved LED Wall Dustproof Smooth IP40 1



Smooth Surface

The smooth surface of the FL Series modules allows for:
Flat, Concave, Convex, S Shape screen construction.



Superior Resolution

The PREMTECO FL Series P1.9 and P2.5 are industry setting, superior display resolutions.

Indoor SMD1010 Flexible Curved LED Wall Dustproof Smooth IP40 2



Slim Shape

The thickness of the module is only 30mm. There are various kinds of shapes to fit projects. We could also make double face flexible LED display as well, and its thickness is only 130mm.

Indoor SMD1010 Flexible Curved LED Wall Dustproof Smooth IP40 3



IP68 Rated

The P3.8 outdoor is manufactured with an IP68 humidity and dustproof rating.



Application Fields

In order to fit each different scene, the flexible LED display is made up of superior quality materials with the cocise and strong cabinet. This product is usually used in:
Stages
Exhibition events
Shopping centers


Item P1.5 P1.7 P1.9
Pixel Pitch 1.5625mm 1.736mm 1.953mm
Led Type SMD1010 SMD1010 SMD1515
Module Resolution 160dots x 160dots 144dots x 144dots 128dots x 128dots
Driving Mode 1/32 Scan 1/29 Scan 1/32 Scan
Pixel Density 409,600dots 331,776dots 262,144dots
Module Size 250mm x 250mm 250mm x 250mm 250mm x 250mm
Cabinet Size Customized Customized Customized
Minimum Viewing Distance ≥1.5m ≥1.7m ≥1.9m
Brightness 600nits ~ 800nits 600nits ~ 800nits 800nits
IP Grade IP41/IP40 IP41/IP40 IP41/IP40
Refresh Rate ≥3,840HZ ≥3,840HZ ≥3,840HZ
Gray Scale 12bits ~ 16bits 12bits ~ 16bits 12bits ~ 16bits
Viewing Angle H:130°/V:130° H:130°/V:130° H:130°/V:130°
Maxmum Power Consumption 720W/sqm 640W/sqm 618W/sqm
Average Power Consumption 240W/sqm 214W/sqm 206W/sqm
Input Voltage AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ
Operating Temperature -20℃ ~ 65℃ -20℃ ~ 65℃ -20℃ ~ 65℃
Operating Humidity 10% ~ 90% 10% ~ 90% 10% ~ 90%
Cabinet Material Aluminum Aluminum Aluminum
Module Weight 1.1kg 1.05kg 1kg
Operating System Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
