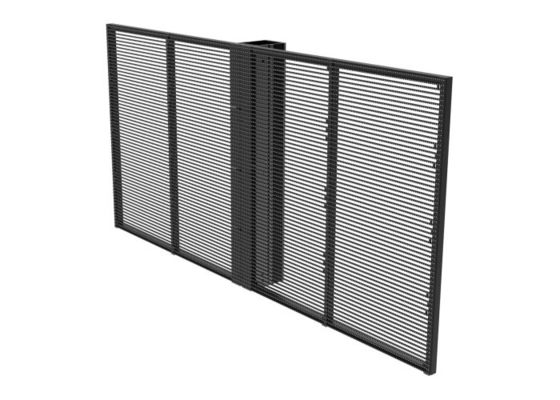

3.91mm Digital Video Display P3.91 Dustproof High Transparency Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AlisenLED |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WoodenCase |
| Delivery Time: | 25 Working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Name: | Indoor LED Transparent Display Screen | Panel Size: | 500mmx1000mm |
|---|---|---|---|
| Pixel Pitch: | 3.91mm-7.81mm | Color: | Full Color |
| Power Supply: | Meanwell Power Supply | Pixels Support: | P3.91mm, P7.82-15.625mm |
| Highlight: | 3.91mm Digital Video Display,Digital Video Display P3.91,Dustproof High Transparency Screen |
||
Product Description
Indoor And Semi-Outdoor Transparent LED Display Screen HD Video Digital Signage
High Transparency
Transparency of our T1 series transparent LED display is up to 52% or even 82%, which offers a range of creative applications for the live event and installation market.
Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.
High Brightness
Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.
Ecnomical and Eco-friendly
The power consumption is 1/3 lower than normal screen.
Light and Slim
80mm cabinet thickness and 4.3kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.
Standard & Customized Casbinet Design
Standard cabinet design 1,000mm x 500mm brings easier installation. Meanwhile, the customized design is available.
Modular Design
The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.
Fast and Easy Installation
Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.
Flexibility
Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.
Application compatible with scenes
- Conference
- Exhibition
- Training
- Stage Performance
- Office Work
- Curved Wall
- Curved Design
- Round Shape
| Item | P1.9 | P2.6 | P2.9 | P3.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm |
| Led Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module Resolution | 128dots x 128dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/32 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Module Pixels | 16,384 dots | 9,216 dots | 7,056 dots | 4,096 dots |
| Module Size | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |
| Cabinet Size | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm |
| Cabinet Resolution | 256dots x 256dots | 192dots x 192dots | 168dots x 168dots | 128dots x 128dots |
| Pixel Density | 262,144 dots/sqm | 147,456 dots/sqm | 112,896 dots/sqm | 65,536 dots/sqm |
| Minimum Viewing Distance | ≥1.9 m | ≥2.6 m | ≥2.9 m | ≥3.9 m |
| Brightness | 800nits ~ 1200nits | 800nits ~ 1200nits | 800nits ~ 1200nits | 800nits ~ 1200nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ | 1,920HZ ~ 3840HZ |
| Gray Scale | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits | 14bits ~ 24bits |
| Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° |
| Maxmum Power Consumption | 560W/sqm | 560W/sqm | 560W/sqm | 560W/sqm |
| Average Power Consumption | 160W/sqm | 160W/sqm | 160W/sqm | 160W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel | 7.5 kg/panel |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
