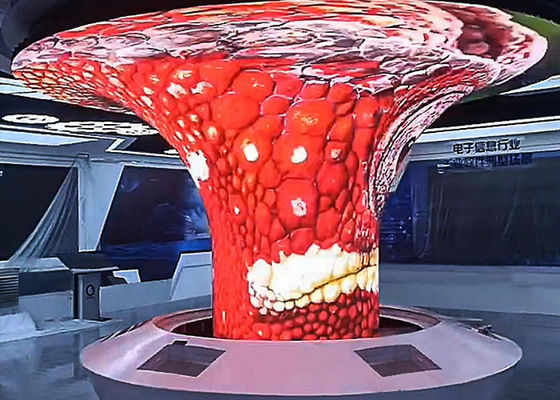

With the development of large screen monitoring system industry, the display system in specific occasions needs to appear in the form of LED special-shaped screen, so as to display different content required in different occasions.
Specifically, different display modes can be selected according to different scenes. Specifically, they can be divided into display unit form and display signal display mode. Specifically, they can be divided into display signal modes with large point spacing and small horizontal display, and display signal modes with small point spacing and large horizontal display.
For example, China Merchants Bank applies the LED special-shaped screen display mode with large dot spacing to financial banking, social information government and other industries; The intelligent display screen with the theme of "Scientific Innovation and Growth" of China Merchants Bank is used in industrial parks, enterprise office areas, high schools and other campuses in the form of LED special-shaped display with small point spacing. The LED special-shaped display screen with large point spacing is used in municipal roads, commercial pedestrian streets and other ground objects.
The LED special-shaped display screen with small point spacing is used in communities, parks and other open places.
Item | P1.9 | P2.5 |
---|---|---|
Pixel Pitch | 1.905mm | 2.54mm |
Led Type | SMD1515 | SMD1921 |
Module Resolution | 160dots x 160dots | 120dots x 120dots |
Driving Mode | 1/32 Scan | 1/30 Scan |
Module Pixels | 25,600dots | 14,400dots |
Module Size | 304.8mm x 304.8mm | 304.8mm x 304.8mm |
Cabinet Size | Customized | Customized |
Cabinet Resolution | 275,556.1dots/sqm | 155,000.31dots/sqm |
Minimum Viewing Distance | ≥1.9m | ≥2.5m |
Brightness | 800nits ~ 1,000nits | 800nits ~ 1,000nits |
IP Grade | IP43 | IP43 |
Refresh Rate | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ |
Gray Scale | 13bits ~ 24bits | 13bits ~ 24bits |
Viewing Angle | H:160°/V:160° | H:160°/V:160° |
Maxmum Power Consumption | 800W/sqm | 800W/sqm |
Average Power Consumption | 230W/sqm | 230W/sqm |
Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
Operating Humidity | 10% ~ 90% | 10% ~ 90% |
Cabinet Material | Iron | Iron |
Cabinet Weight | 35kg/sqm | 35kg/sqm |
Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
