Product Details
Payment & Shipping Terms
Name: |
Creative LED Display Screen |
Brightness: |
> 800nits |
Color: |
RGB Full Color |
Cabinet Material: |
Die-Casting Aluminum |
Refresh Rate: |
> 3840 HZ |
Pixel PItch: |
P1.9, P2.6, P2.9, 3.91 |
Name: |
Creative LED Display Screen |
Brightness: |
> 800nits |
Color: |
RGB Full Color |
Cabinet Material: |
Die-Casting Aluminum |
Refresh Rate: |
> 3840 HZ |
Pixel PItch: |
P1.9, P2.6, P2.9, 3.91 |

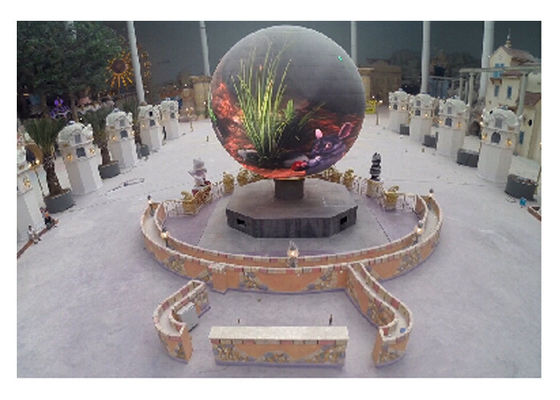

The installation methods of LED circular screen are flexible and diverse, which can be installed on walls, columns, tops, etc. If it is installed on the wall, it can be realized by hanging or hanging rails, which can save more space in a smaller space. If it is installed on the column, the LED circular screen can be directly fixed on the column to achieve a more delicate effect.
The installation of LED ring screen is simple. It can be connected by digital signal interface without additional control system. It can realize a variety of data input through a variety of digital input signals, such as HDMI, DVI, VGA, RS232, USB, etc. It has strong adaptability. In addition, the LED circular screen can also transmit data through wireless technology, which has strong convenience and reliability.
LED circular screen can project a variety of information to the surface, such as text, pictures, videos, etc., making it easier for the audience to accept information and be attracted. It can be used in many occasions, such as lecture halls, large exhibitions, commercial spaces, etc.
| Item | P1.9 | P2.5 |
|---|---|---|
| Pixel Pitch | 1.905mm | 2.54mm |
| Led Type | SMD1515 | SMD1921 |
| Module Resolution | 160dots x 160dots | 120dots x 120dots |
| Driving Mode | 1/32 Scan | 1/30 Scan |
| Module Pixels | 25,600dots | 14,400dots |
| Module Size | 304.8mm x 304.8mm | 304.8mm x 304.8mm |
| Cabinet Size | Customized | Customized |
| Cabinet Resolution | 275,556.1dots/sqm | 155,000.31dots/sqm |
| Minimum Viewing Distance | ≥1.9m | ≥2.5m |
| Brightness | 800nits ~ 1,000nits | 800nits ~ 1,000nits |
| IP Grade | IP43 | IP43 |
| Refresh Rate | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ |
| Gray Scale | 13bits ~ 24bits | 13bits ~ 24bits |
| Viewing Angle | H:160°/V:160° | H:160°/V:160° |
| Maxmum Power Consumption | 800W/sqm | 800W/sqm |
| Average Power Consumption | 230W/sqm | 230W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Iron | Iron |
| Cabinet Weight | 35kg/sqm | 35kg/sqm |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
