MOQ: | Negotiable |
Price: | Negotiable |
Standard Packaging: | Wooden Case |
Delivery Period: | 25 Working Days |
Payment Method: | T/T |
High refresh rate, high gray scale, great color saturation and intelligent color temperature adjustment which make the visual effect of our SF series LED display more vivid.

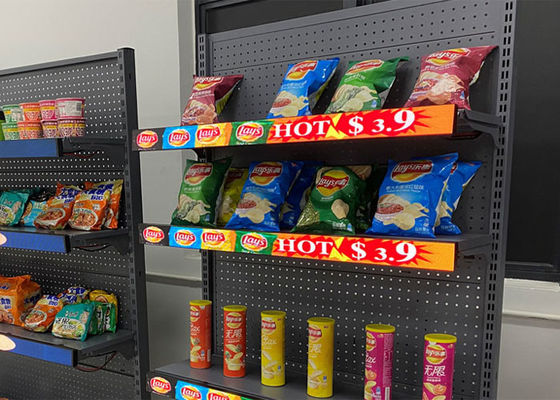

SF is designed for different types of shelves; it can be placed in shopping malls, supermarkets, retail stores, etc
22mm cabinet thickness and 1.5kg weight make SF lighter and thinner than most LED shelf displays in the market.
High-tech GOB raises the level of protection up to IP65, which protects the screen from being damaged by water and collision.
Advanced controlling system enables the screen to "plug and play". What's more, the content of display can be changed via cloud-base anywhere anytime.
Shelf LED screen can play various videos and pictures.
It always shows attractive videos and pictures display effects to our customers.
Item | nbsp; | P1.8 |
---|---|---|
Pixel Pitch | nbsp; | 1.875mm |
Led Type | nbsp; | SMD1010 |
Module Resolution | nbsp; | 160dots x 32dots |
Driving Mode | nbsp; | 1/32 Scan |
Module Pixels | nbsp; | 5,120 dots |
Module Size | nbsp; | 300mm x 60mm |
Cabinet Size | nbsp; | 600mm x 60mm or 900mm x 60mm |
Cabinet Resolution | nbsp; | 320dots x 32dots or 480dots x 32dots |
Pixel Density | nbsp; | 284,444.44 dots/sqm |
Minimum Viewing Distance | nbsp; | ≥1.8 m |
Brightness | nbsp; | 800nits ~ 1,000nits |
IP Grade | nbsp; | IP43 Or IP65 (With GOB technology) |
Refresh Rate | nbsp; | 1,920 ~ 3,840HZ |
Gray Scale | nbsp; | 13bits ~ 24bits |
Viewing Angle | nbsp; | H:160°/ V:160° |
Maxmum Power Consumption | nbsp; | 800W/sqm |
Average Power Consumption | nbsp; | 230W/sqm |
Input Voltage | nbsp; | AC110V ~ AC220V @50/60HZ |
Operating Temperature | nbsp; | -20℃ ~ 65℃ |
Operating Humidity | nbsp; | 10% ~ 90% |
Cabinet Material | nbsp; | Aluminum |
Cabinet Weight | nbsp; | 1.2 kg or 1.5kg/panel |
Operating System | nbsp; | Windows(win7,Win8,Win10,etc) |
Signal Source Compatibility | nbsp; | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
