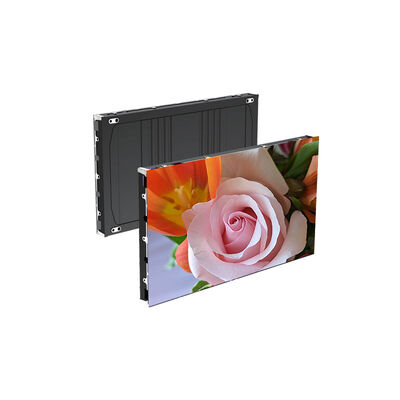

P1.86 Fine Pixel Pitch LED Display with Ultra-Thin Lightweight Cabinet

The AlisenLED P1.86 Fine Pixel Pitch LED Display is engineered for professional indoor environments where high image clarity, compact cabinet design and efficient operation are important.

With a 1.875mm pixel pitch and 284,444 pixels per square meter, the display provides detailed visual performance for close and medium-range viewing. Its 600 * 337.5 * 40mm die-cast aluminum cabinet combines an ultra-thin 40mm profile with a lightweight 3.9kg structure, making it easier to integrate into modern architectural and commercial interiors.

The display also features 3840Hz refresh rate, 16-bit grayscale, 30,000:1 contrast ratio and ≥98% brightness uniformity, providing a smooth and consistent visual experience for professional video wall applications.

The 1.875mm pixel pitch provides a high-density LED matrix while maintaining an efficient solution for professional indoor video walls.

With 284,444 dots/m², the display is suitable for applications where viewers need to see detailed content without requiring an extremely small pixel pitch.

It can clearly present:

• Presentations
• Text and documents
• Business dashboards
• HD video
• Data visualization
• Digital graphics
• Live camera feeds
• Multimedia content

P1.86 offers a practical solution for projects that require high image detail together with a balanced system configuration.

One of the major advantages of the P1.86 LED display is its compact cabinet structure.

The cabinet measures only 600 * 337.5 * 40mm, providing an ultra-thin 40mm profile for indoor installations. The die-cast aluminum construction combines structural precision with a lightweight design.

• Only 40mm cabinet depth
• Compact installation footprint
• Suitable for wall-mounted applications
• Easier integration into architectural interiors
• Reduced visual impact of the display structure
• Flexible installation planning

The slim cabinet is particularly suitable for modern corporate, commercial and architectural environments where installation space and appearance are important.

Each cabinet weighs approximately 3.9kg, providing a lightweight solution for professional indoor LED installations.

The lightweight cabinet can simplify handling during installation and maintenance while reducing the structural load associated with large LED video walls.

This makes the P1.86 suitable for projects where cabinet weight is an important consideration.

The P1.86 LED Display features a 3840Hz refresh rate for smooth image reproduction.

The high refresh rate helps reduce visible flicker and supports dynamic video content and camera-based applications.

It is suitable for:

• Broadcast environments
• Corporate video conferencing
• Live streaming
• Studio applications
• Event recording
• Professional presentations

For camera-facing installations, the high refresh rate helps provide stable visual performance when the LED screen is captured by cameras.

The display supports 16-bit grayscale processing, helping produce smooth transitions between different brightness levels.

This is especially valuable when displaying complex video content, dark scenes, gradients and detailed graphics.

• Smooth brightness transitions
• Better shadow details
• Natural gradient reproduction
• Improved dark-scene performance
• Richer image depth
• More refined visual presentation

The combination of fine pixel pitch and 16-bit grayscale makes the P1.86 suitable for professional indoor visual applications.

With a specified 30,000:1 contrast ratio, the P1.86 LED display is designed to provide clear differentiation between dark and bright image areas.

This helps improve the visual depth of:

• High-definition video
• Dark backgrounds
• Presentations
• Digital artwork
• Multimedia content

The high contrast performance contributes to a more defined and immersive display experience.

The display provides 600 cd/m² brightness and ≥98% brightness uniformity.

High brightness uniformity is important when multiple cabinets are combined into a large LED video wall.

Consistent brightness across the display helps create a visually continuous screen and minimizes noticeable differences between different display areas.

The P1.86 is designed for front service, making maintenance more convenient for fixed indoor installations.

Front maintenance is especially useful when the LED wall is installed:

• Directly against a wall
• Inside a built-in architectural structure
• In a conference room
• In a corporate lobby
• In a control center
• In a showroom

The front-service structure can reduce the rear clearance required for maintenance and provide greater flexibility when planning the installation.

The P1.86 model has a specified maximum power consumption of 285W/m² and an average power consumption of only 75W/m².

This makes it suitable for professional indoor projects where operational efficiency is an important consideration.

The display supports 100–240V AC input and 50/60Hz operation.

The P1.86 LED Display is specified with a 100,000-hour lifespan for long-term professional use.

The specified operating conditions include:

• Operating temperature: -10°C to 40°C
• Operating humidity: 10%–90% RH
• Front protection: IP40
• Rear protection: IP20
• Application: Indoor
• Lifespan: 100,000 hours

Create a large-format display for presentations, video conferences, business meetings and corporate communication.

Display operational dashboards, monitoring information, maps and real-time data with high visual detail.

The fine pixel pitch and 3840Hz refresh rate make the display suitable for studio backgrounds and camera-facing applications.

The ultra-thin cabinet design allows the LED wall to integrate naturally into modern architectural interiors.

Create high-impact digital displays for product presentations, brand communication and customer experiences.

Use the high-density LED display for digital artwork, multimedia storytelling, exhibitions and immersive visual content.

Provide large, clear digital content for lectures, presentations and professional training.

P1.86 Fine Pixel Pitch
1.875mm pixel pitch with 284,444 dots/m² for detailed indoor visual content.

Ultra-Thin Cabinet
Only 40mm cabinet depth for space-efficient installations.

Lightweight Design
3.9kg cabinet weight for easier handling and installation.

3840Hz Refresh Rate
Smooth visual performance and suitable for camera-based applications.

16-Bit Grayscale
Smooth brightness transitions and improved image depth.

30,000:1 Contrast Ratio
Enhanced distinction between dark and bright content.

≥98% Brightness Uniformity
Consistent visual performance across the LED wall.

Front Service
Convenient maintenance for wall-mounted and space-restricted installations.

75W/m² Average Power Consumption
Designed for efficient professional indoor operation.

A P1.86 LED Display uses a 1.875mm pixel pitch to provide high pixel density for professional indoor applications.

It is suitable for conference rooms, corporate spaces, control centers, broadcast environments, showrooms and other indoor video wall applications.

The P1.86 model provides 284,444 dots per square meter, supporting detailed image reproduction for indoor viewing.

The cabinet has a depth of only 40mm, making it an ultra-thin solution for indoor LED video walls.

The cabinet weighs approximately 3.9kg, making it lightweight for installation and handling.

The P1.86 LED display uses a 3840Hz refresh rate, providing smooth image reproduction and supporting camera-based applications.

Yes. The display supports 16-bit grayscale, helping produce smoother brightness transitions and detailed visual content.

The specified brightness is 600 cd/m², with brightness uniformity of ≥98%.

Yes. The P1.86 model uses a front-service maintenance design, making it suitable for wall-mounted and space-restricted installations.

The specified average power consumption is 75W/m², while maximum power consumption is 285W/m².

Typical applications include:

• Conference rooms
• Boardrooms
• Command centers
• Control rooms
• Broadcast studios
• Corporate lobbies
• Retail stores
• Showrooms
• Museums
• Exhibition halls
• Education facilities

P1.25 has a smaller pixel pitch and higher pixel density, making it more suitable for applications requiring extremely high pixel density and closer viewing.

P1.86 provides a 284,444 dots/m² pixel density and can be a more balanced choice when the project requires detailed indoor visuals together with an ultra-thin, lightweight cabinet and lower average power consumption.

The AlisenLED P1.86 Fine Pixel Pitch LED Display combines 1.875mm pixel pitch, Flip Chip COB technology, 284,444 dots/m² pixel density, 3840Hz refresh rate, 16-bit grayscale, 30,000:1 contrast, ≥98% brightness uniformity and a 40mm ultra-thin cabinet into a professional indoor LED solution.

Its 3.9kg lightweight cabinet, front-service design and 75W/m² average power consumption make it particularly attractive for modern fixed LED video wall projects where installation flexibility, visual performance and operating efficiency all matter.

Contact AlisenLED for P1.86 LED display specifications, project configuration and quotation.
