3840Hz Front Service Seamless Indoor LED Video Wall

The AlisenLED P1.53 Fine Pixel Pitch LED Display is a professional indoor LED video wall designed for applications requiring high pixel density, smooth image reproduction and a slim, lightweight cabinet structure.

Based on the 63V15 platform, the display uses a 1.5625mm pixel pitch, Flip Chip COB technology and a 600 × 337.5 × 40mm die-cast aluminum cabinet. With a cabinet weight of only 3.9kg, it provides a compact and lightweight solution for modern indoor LED installations.

The combination of 3840Hz refresh rate, 16-bit grayscale, 600cd/m² brightness and ≥98% brightness uniformity provides stable and detailed visual performance for professional video wall applications.

High Pixel Density for Detailed Indoor Visuals

The P1.53 LED display uses a fine pixel pitch of 1.5625mm, delivering approximately 409,600 dots per square meter.

The high pixel density allows the display to reproduce detailed content for indoor viewing environments where viewers may be positioned relatively close to the screen.

It is suitable for displaying:

• Presentations
• Business documents
• Data dashboards
• High-definition video
• Graphics and images
• Monitoring information
• Digital signage
• Live video feeds
• Multimedia content

The P1.53 configuration provides a practical solution for professional environments requiring detailed visual communication without moving to an even smaller pixel pitch.

Flip Chip COB Technology

The display uses Flip Chip COB as its LED packaging technology.

The COB structure integrates the LED chips onto the PCB and creates a more protected and integrated display surface.

COB Technology Highlights

• Integrated LED chip structure
• Enhanced protection of LED components
• Refined display surface
• Suitable for fine pixel pitch applications
• Supports high-density LED packaging
• Designed for professional indoor environments

The technology is particularly suitable for fine pixel pitch displays where image density, surface protection and overall display quality are important.

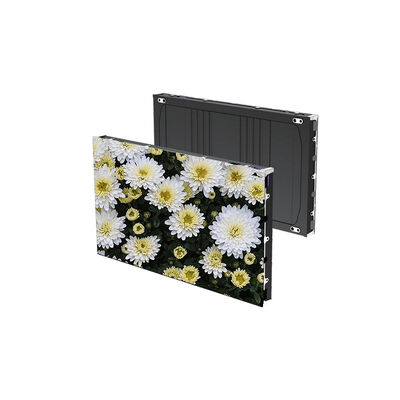

Die-Cast Aluminum Cabinet

The P1.53 LED display uses a 600 × 337.5 × 40mm die-cast aluminum cabinet.

With a cabinet depth of only 40mm, the display provides an ultra-thin structure that can be integrated into modern indoor environments.

Cabinet Advantages

• 600 × 337.5mm cabinet dimensions
• Only 40mm cabinet depth
• Die-cast aluminum construction
• 3.9kg cabinet weight
• 384 × 216 cabinet resolution
• 300 × 168.75mm module size

The compact cabinet structure helps simplify installation while reducing the visual and physical footprint of the LED video wall.

Lightweight 3.9kg Cabinet

Each cabinet weighs approximately 3.9kg, making the P1.53 a lightweight solution for fixed indoor LED video walls.

A lightweight cabinet can make handling and installation more convenient, particularly for large-scale LED walls where many cabinets need to be assembled.

It can also provide greater flexibility when integrating an LED display into architectural interiors.

3840Hz High Refresh Rate

The P1.53 LED Display provides a 3840Hz refresh rate for smooth image reproduction.

The high refresh rate is suitable for dynamic video content and professional applications where LED screens may be captured by cameras.

Suitable Applications

• Broadcast studios
• Video conferencing
• Live streaming
• Corporate presentations
• Video production
• Camera-facing environments

It helps provide stable visual performance for both direct viewing and camera-based applications.

16-Bit Grayscale for Smooth Image Quality

The display supports 16-bit grayscale processing, helping reproduce smooth transitions between different brightness levels.

This is particularly useful when displaying content containing:

• Dark scenes
• Shadows
• Gradient backgrounds
• Complex graphics
• High-quality video
• Low-brightness details

The 16-bit grayscale capability contributes to smoother image transitions and a more refined viewing experience.

600cd/m² Brightness and ≥98% Uniformity

The P1.53 model is specified with 600cd/m² brightness and ≥98% brightness uniformity.

High brightness uniformity is important for large LED video walls because multiple cabinets need to appear visually consistent when assembled into one screen.

The uniform display performance helps create a continuous and professional visual surface.

30,000:1 Contrast Ratio

With a specified 30,000:1 contrast ratio, the display provides strong differentiation between dark and bright image areas.

This can enhance the visual depth of:

• HD video
• Digital artwork
• Presentations
• Dark backgrounds
• Multimedia content

The high contrast specification complements the fine pixel pitch and grayscale performance for professional indoor visual applications.

Front Service Design

The P1.53 LED Display supports front serviceability, making maintenance more convenient for fixed installations.

Front maintenance is especially valuable when the LED wall is installed close to a wall or integrated into an architectural structure where rear access is limited.

Front Service Benefits

• Easier module access
• Reduced rear maintenance space
• Convenient wall-mounted installation
• Simplified servicing
• Flexible installation planning
• Reduced maintenance disruption

Seamless Indoor Video Wall

The modular cabinet structure allows multiple panels to be assembled into a large-format LED video wall.

The fine pixel pitch and precise cabinet configuration create a continuous display surface suitable for professional visual environments.

The P1.53 LED display can be configured for:

• Corporate video walls
• Conference room displays
• Control room LED walls
• Broadcast backgrounds
• Digital experience walls
• Retail displays
• Exhibition installations

Efficient Indoor LED Solution

The P1.53 model has a specified maximum power consumption of 285W/m² and an average power consumption of only 75W/m².

The display supports 100–240V AC input and 50/60Hz operation.

This provides a practical solution for professional indoor projects where both visual performance and operating efficiency need to be considered.

Designed for Long-Term Operation

The P1.53 LED display is specified with a 100,000-hour lifespan.

The specified operating environment includes:

• Operating temperature: -10°C to 40°C
• Operating humidity: 10%–90% RH
• Front protection: IP40
• Rear protection: IP20
• Application: Indoor
• Lifespan: 100,000 hours

Professional Applications

Conference Rooms

Create a high-resolution display wall for presentations, video conferencing and business meetings.

Command & Control Centers

Display monitoring information, dashboards, maps and operational data with detailed visual clarity.

Broadcast Studios

The combination of fine pixel pitch, 3840Hz refresh rate and 16-bit grayscale makes the display suitable for professional studio environments.

Corporate Lobbies

The 40mm ultra-thin cabinet helps integrate the LED wall into modern corporate interiors.

Retail & Showrooms

Create high-impact digital displays for product presentations, brand communication and customer experiences.

Museums & Exhibition Halls

Use the fine pixel pitch LED wall for digital artwork, multimedia exhibitions and immersive visual content.

Key Product Advantages

1.5625mm Fine Pixel Pitch

High pixel density for detailed indoor visual content.

Flip Chip COB

Integrated LED packaging technology for a refined and protected display surface.

40mm Ultra-Thin Cabinet

Compact cabinet depth for space-efficient indoor installation.

3.9kg Lightweight Cabinet

Designed to simplify handling and installation.

3840Hz Refresh Rate

Smooth visual reproduction and camera-friendly performance.

16-Bit Grayscale

Smooth brightness transitions and improved image depth.

30,000:1 Contrast

Enhanced distinction between bright and dark content.

≥98% Brightness Uniformity

Consistent display performance across the video wall.

Front Service

Convenient maintenance for wall-mounted and space-restricted applications.

75W/m² Average Power

Efficient operation for professional indoor applications.

Technical Specifications

以上参数按照你提供的 AlisenLED 63V15规格资料整理.

FAQ

What is a P1.53 Fine Pixel Pitch LED Display?

The P1.53 LED Display is a fine pixel pitch indoor LED screen. The corresponding 63V15 specification lists a 1.5625mm pixel pitch and 409,600 dots/m² pixel density.

What LED technology does it use?

The display uses Flip Chip COB technology.

What is the cabinet size?

The cabinet measures 600 × 337.5 × 40mm, with a resolution of 384 × 216.

How much does the cabinet weigh?

Each cabinet weighs approximately 3.9kg.

What is the refresh rate?

The refresh rate is 3840Hz.

Does it support 16-bit grayscale?

Yes. The specification lists 16-bit grayscale.

What is the brightness?

The specified brightness is 600cd/m², with ≥98% brightness uniformity.

What is the contrast ratio?

The specified contrast ratio is 30,000:1.

Is the display front serviceable?

Yes. The specification lists Front under serviceability.

What is the average power consumption?

The average power consumption is specified at 75W/m², while maximum power consumption is 285W/m².

What is the lifespan?

The specified lifespan is 100,000 hours.

What certifications are available?

The specification lists CE, FCC, CB and ETL certifications.

P1.53 Fine Pixel Pitch LED Display for Professional Indoor Video Walls

The AlisenLED P1.53 Fine Pixel Pitch LED Display combines high pixel density, Flip Chip COB technology, a 40mm ultra-thin die-cast aluminum cabinet, 3.9kg lightweight design, 3840Hz refresh rate, 16-bit grayscale, 30,000:1 contrast and front-service maintenance into a professional indoor LED video wall solution.

With its combination of detailed image performance, compact cabinet construction and efficient 75W/m² average power consumption, it is well suited to conference rooms, corporate environments, command centers, broadcast studios, showrooms and other premium indoor applications.

Contact AlisenLED for P1.53 Fine Pixel Pitch LED Display specifications, project configuration and quotation.
