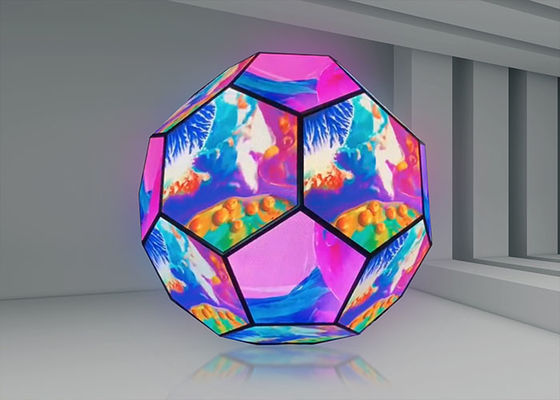

LED special-shaped screen is a unique appearance LED splicing screen based on the LED splicing screen. It is different from the rectangular and flat shape of the conventional LED splicing screen. It has irregular shapes such as arc, curved surface, letters, etc. The appearance of LED special-shaped splicing screen can not only attract the attention of the audience at the first time to achieve better communication effect, but also better expand the application scope of LED splicing screen splicing, and put forward higher requirements for daily application and maintenance.
1. The LED display screen is not used for a long time, and it should be maintained and adjusted by power on frequently. No matter indoor or outdoor LED display is not used for a long time, dead lights and blind spots are likely to appear when it is re enabled.
2. LED display screen is moderately ventilated, which can make the water vapor attached to the display screen volatilize rapidly and reduce the humidity of indoor environment. However, it should be noted that ventilation in windless and humid weather should be avoided, which will increase indoor humidity.
3. Keep the operating environment of the LED display screen dry, and do not let anything with moisture absorption property enter the LED display screen, otherwise it is easy to cause corrosion of the display elements, or even scrap them.
4. The screen should not be full white and bright for a long time, so as to avoid excessive current, power supply heating, LED tube damage and affecting the service life.
| Item | P1.9 | P2.5 |
|---|---|---|
| Pixel Pitch | 1.905mm | 2.54mm |
| Led Type | SMD1515 | SMD1921 |
| Module Resolution | 160dots x 160dots | 120dots x 120dots |
| Driving Mode | 1/32 Scan | 1/30 Scan |
| Module Pixels | 25,600dots | 14,400dots |
| Module Size | 304.8mm x 304.8mm | 304.8mm x 304.8mm |
| Cabinet Size | Customized | Customized |
| Cabinet Resolution | 275,556.1dots/sqm | 155,000.31dots/sqm |
| Minimum Viewing Distance | ≥1.9m | ≥2.5m |
| Brightness | 800nits ~ 1,000nits | 800nits ~ 1,000nits |
| IP Grade | IP43 | IP43 |
| Refresh Rate | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ |
| Gray Scale | 13bits ~ 24bits | 13bits ~ 24bits |
| Viewing Angle | H:160°/V:160° | H:160°/V:160° |
| Maxmum Power Consumption | 800W/sqm | 800W/sqm |
| Average Power Consumption | 230W/sqm | 230W/sqm |
| Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
| Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Iron | Iron |
| Cabinet Weight | 35kg/sqm | 35kg/sqm |
| Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
|
|
