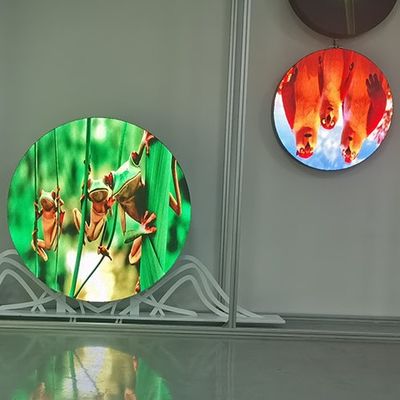

Creative Round LED Screen SMD1515 RGB Naked Eye 3D LED Screen Waterproof

China Alisen Electronic Co., Ltd certification
China Alisen Electronic Co., Ltd certification
Customer Reviews
Thank you for your cooperation. We got your shipment and that is first time I saw you outdoor modules. It looks good and your guys packed everything very carefully. Thank you so much!

—— Oleg

Your LED display is working excellent and our governments are very satisfied with your screens

—— Mr. Jorge Gomez Torres

I'm Online Chat Now

Creative Round LED Screen SMD1515 RGB Naked Eye 3D LED Screen Waterproof

Creative Round LED Screen SMD1515 RGB Naked Eye 3D LED Screen Waterproof

Name: Creative LED Display Screen Brightness: > 800nits
Color: RGB Full Color Cabinet Material: Die-Casting Aluminum
Refresh Rate: > 3840 HZ Pixel PItch: P1.9, P2.6, P2.9, 3.91
High Light:

Round LED Screen SMD1515


Round LED Screen RGB


Naked Eye 3D LED Screen Waterproof


Indicators of LED display screens

In recent years, LED display screen has been brilliant in various fields. The superior performance of LED display screen makes it valuable in different fields and scenes. More and more people are gradually familiar with and use LED display screen. The emergence of a broad market for LED displays will inevitably create a large number of enterprises, and the technical differences among LED display enterprises are still large. How to judge the quality of the display screen, so as to choose a cost-effective LED display screen for ourselves, requires us to master the basic technical indicators of LED display screens.
1. Luminance index
When purchasing the LED display screen, you must determine the use scenario in advance, whether it is installed outdoors or indoors. Generally speaking, the outdoor light source is strong. For the outdoor light source, the LED display brightness is required to be high, requiring 5000 cd/m ² above; However, the indoor light is weak, and the LED display is too bright, which leads to visual fatigue, eye fatigue and other bad feelings. The indoor scene of LED display only needs 1800cd/m ² sure. If you know this clearly, you will not make a mistake, which will lead to waste of money and poor use experience.
2. White balance index
The white balance effect is one of the important indicators of the display screen. Everyone is familiar with the term white balance, but many people do not understand the real principle. LED display lamp beads are packed in a three in one package, that is, one lamp bead is actually a combination of red, green and blue lamp beads. According to the principle of three primary colors mixing, different colors are realized. When the ratio of red, green and blue is 1:4.6:0.16, it will show pure white. The quality of white balance is mainly determined by the display control system, and the tube core will also affect the oxidation of color.
3. Gray level indicator
Grayscale is related to brightness. It refers to the grading performance of brightness light and shade levels, namely the so-called color scale or gray scale. The larger the grading, if the LED display screen can be rendered sensitively, the higher the performance of LED chip control sensitivity is required. Grayscale grading usually determines the gorgeous level of color. Generally speaking, the larger the gray level is, the richer the color of the display screen will be, and the more gorgeous the viewing effect will be.
4. Flatness index
Flatness refers to the overall ups and downs of the screen. When touching the LED display screen, it is called "flatness" in the industry. Although it is easy for many people to ignore this when purchasing, the LED display screen with high flatness is a good screen. Generally speaking, the smaller the flatness, the smoother the screen display, the more uniform the color, and the better the viewing effect. On the contrary, the screen is prone to distortion and the viewing effect is poor.
5. Refresh frequency indicator
The refresh rate refers to the number of times the screen is refreshed per second. Generally speaking, the larger the refresh rate of LED display, the smoother the screen display, and the lower the refresh rate. Not only will there be ugly ripples, but also the feeling of the screen of the shadow card, which will affect the eyes and make people feel uncomfortable. Especially playing competitive games. The refresh rate of LED display devices is particularly important, which directly affects the game experience. Therefore, when selecting, try to choose the one with a refresh rate higher than 1000Hz. If the refresh rate is higher than 3000Hz, it can be called a high-performance LED display screen with better effect.

Item P1.9 P2.5
Pixel Pitch 1.905mm 2.54mm
Led Type SMD1515 SMD1921
Module Resolution 160dots x 160dots 120dots x 120dots
Driving Mode 1/32 Scan 1/30 Scan
Module Pixels 25,600dots 14,400dots
Module Size 304.8mm x 304.8mm 304.8mm x 304.8mm
Cabinet Size Customized Customized
Cabinet Resolution 275,556.1dots/sqm 155,000.31dots/sqm
Minimum Viewing Distance ≥1.9m ≥2.5m
Brightness 800nits ~ 1,000nits 800nits ~ 1,000nits
IP Grade IP43 IP43
Refresh Rate 1,920HZ ~ 3,840HZ 1,920HZ ~ 3,840HZ
Gray Scale 13bits ~ 24bits 13bits ~ 24bits
Viewing Angle H:160°/V:160° H:160°/V:160°
Maxmum Power Consumption 800W/sqm 800W/sqm
Average Power Consumption 230W/sqm 230W/sqm
Input Voltage AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ
Operating Temperature -20℃ ~ 65℃ -20℃ ~ 65℃
Operating Humidity 10% ~ 90% 10% ~ 90%
Cabinet Material Iron Iron
Cabinet Weight 35kg/sqm 35kg/sqm
Operating System Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
