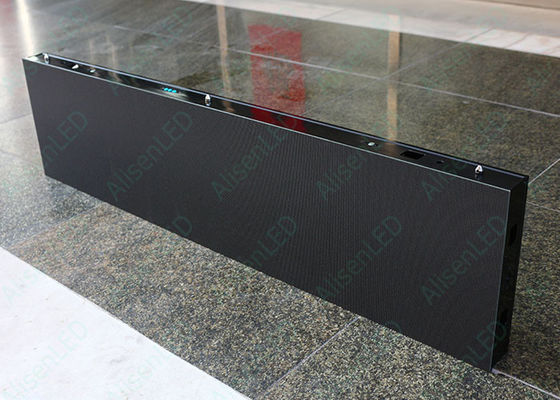

OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm

Certification
China Alisen Electronic Co., Ltd certification
China Alisen Electronic Co., Ltd certification
Customer Reviews
Thank you for your cooperation. We got your shipment and that is first time I saw you outdoor modules. It looks good and your guys packed everything very carefully. Thank you so much!

—— Oleg

Your LED display is working excellent and our governments are very satisfied with your screens

—— Mr. Jorge Gomez Torres

I'm Online Chat Now

OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm

OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm
OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm

Large Image :  OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm

Product Details:
Place of Origin: China
Brand Name: OEM
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WoodenCase
Delivery Time: 25 Working days
Payment Terms: T/T

OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm

Description
Name: Indoor LED Display Screen Brightness: > 800nits
Color: RGB Full Color Cabinet Material: Die-Casting Aluminum
Curved Lock: Yes Refresh Rate: > 3840 HZ
High Light:

OEM Indoor Fixed LED Display

,

Indoor Fixed LED Display Waterproof

,

LED Display Screen Cabinet IP43

Full Color Indoor Fixed Wall Mounted LED Display Screen 1000mmx250mm die-casting Aluminum cabinet

Control System

Brompton Or NovaStar System Supported.

Secure And Strong Arc Lock





  • Putting connectors down is for easier pulling out and inserting in.
  • Testing button is to test the panel before building up the screen.
  • Strong locking system and curved design are available. It can be designed to be curved to form a curved screen from -6°(convex) to +6°(concave).

OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm 0

Excellent Protection Gadgets

A “L” shape steel plate on each corner can be turned into the proper direction to raise the modules. This smart design can help protect the LED when the panel hits the ground.

By adopting high tech GOB(P1.9) technology, the screen is waterproof and anti-collision.

We use the innovative “AOB” technology to reinforce the soldering connection between LED and PCB board. So the LED won’t be broken easily.



Fast Ground Stacking Setup

We can hang up the cabinet by fly bar with a truss system and also quickly install the cabinet on the ground with the clamp set and the ground stand system. That is very convenient for the functions such as sports events and exhibition.

OEM Indoor Fixed LED Display Screen Cabinet Waterproof IP43 1000mmx250mm 1

Brilliant Visual Performance

LED signage always quickly captures the audience's attention and provides unforgettable visual experience for the viewers. Meanwhile, using black LED will increase the color contrast of the screen.

Ultimate Refresh Rate Refresh rate of IR1 PRO LED video wall can be up to 3,840Hz

Excellent Gray Scale Gray Scale of this kind of LED panel can be (13bits-24bits)



Compatible Regular Truss

Regular truss works for stacking, no custom truss needed.



Application compatible with scenes



  • Conference
  • Exhibition
  • Training
  • Stage Performance
  • Office Work
  • Curved Wall
  • Curved Design
  • Round Shape




Item P1.9 P2.6 P2.9 P3.9
Pixel Pitch 1.953mm 2.604mm 2.976mm 3.906mm
Led Type SMD1515 SMD1515 SMD2020 SMD2020
Module Resolution 128dots x 128dots 96dots x 96dots 84dots x 84dots 64dots x 64dots
Driving Mode 1/32 Scan 1/32 Scan 1/28 Scan 1/16 Scan
Module Pixels 16,384 dots 9,216 dots 7,056 dots 4,096 dots
Module Size 250mm x 250mm 250mm x 250mm 250mm x 250mm 250mm x 250mm
Cabinet Size 500mm x 500mm 500mm x 500mm 500mm x 500mm 500mm x 500mm
Cabinet Resolution 256dots x 256dots 192dots x 192dots 168dots x 168dots 128dots x 128dots
Pixel Density 262,144 dots/sqm 147,456 dots/sqm 112,896 dots/sqm 65,536 dots/sqm
Minimum Viewing Distance ≥1.9 m ≥2.6 m ≥2.9 m ≥3.9 m
Brightness 800nits ~ 1200nits 800nits ~ 1200nits 800nits ~ 1200nits 800nits ~ 1200nits
IP Grade IP43 IP43 IP43 IP43
Refresh Rate 1,920HZ ~ 3840HZ 1,920HZ ~ 3840HZ 1,920HZ ~ 3840HZ 1,920HZ ~ 3840HZ
Gray Scale 14bits ~ 24bits 14bits ~ 24bits 14bits ~ 24bits 14bits ~ 24bits
Viewing Angle H:160°/ V:160° H:160°/ V:160° H:160°/ V:160° H:160°/ V:160°
Maxmum Power Consumption 560W/sqm 560W/sqm 560W/sqm 560W/sqm
Average Power Consumption 160W/sqm 160W/sqm 160W/sqm 160W/sqm
Input Voltage AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ
Operating Temperature -20℃ ~ 65℃ -20℃ ~ 65℃ -20℃ ~ 65℃ -20℃ ~ 65℃
Operating Humidity 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight 7.5 kg/panel 7.5 kg/panel 7.5 kg/panel 7.5 kg/panel
Operating System Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
