Flexible P10 SMD Outdoor LED Display Stadium LED Perimeter Screen

Product Details

Place of Origin: China

Brand Name: AlisenLED

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: WoodenCase

Payment Terms: T/T

Get Best Price
Highlight:

Flexible P10 SMD Outdoor LED Display

,

P10 SMD Outdoor LED Display

,

Stadium LED Perimeter Screen

Name:
Perimeter LED Display P4, P6, P8, P10
Pixel Pitch:
P4mm, P6.67mm, P8mm, P10mm
Material:
Aluminum
WaterProof:
Front:IP65/Back:IP54
View Angle:
H.120Degree/V.115Degree
Max Power Consumption:
450W/Sqm
Ave. Power Consumption:
150W/Sqm
Cabinet Size:
1260mmX960mm
Name:
Perimeter LED Display P4, P6, P8, P10
Pixel Pitch:
P4mm, P6.67mm, P8mm, P10mm
Material:
Aluminum
WaterProof:
Front:IP65/Back:IP54
View Angle:
H.120Degree/V.115Degree
Max Power Consumption:
450W/Sqm
Ave. Power Consumption:
150W/Sqm
Cabinet Size:
1260mmX960mm
Flexible P10 SMD Outdoor LED Display Stadium LED Perimeter Screen

P10mm Stadium LED Wall Sport Indoor | Outdoor Perimeter LED Display





Reliable Protection and Flexible Adjustment

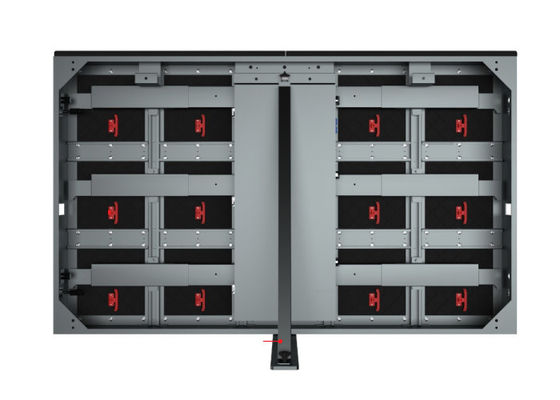

The main difference between perimeter led screen and the other series is perimeter led screen has soft plastic screen in the stadium by accident. It has a back supporting stand for adjusting the screen to different viewing angle.



HD Performance

Since we use high-quality SMD LED and excellent PCB design, the perimeter led screen can bring you the HD picture performance indoors or outdoors. The pixel pitches are P6.6, P8 and P10.
The high Brightness of Stadium led screen can be up to 10,000 nits, even under the scorching sun, the audience can clearly see the match score and the sponsorship advertisenment. It's 160 degrees wide viewing angle and up to 24bits grey scale of this screen can bring an excellent visiual experience to the audience present.



High Protective Grade IP65

Stadium led screen adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environment.



Multifunction For Sports Events

Perimeter led screen can be also used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.



Seamless Connection

The high-precision magnesium aluminum alloy cabinet is adopted. Compared with the traditional one, permeter led screen's cabinet joint is quicker, and it has better splicing effect.



UEFA Standard large view angle

Our perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums. The Viewing angle of our sports LED display can be up to 160°



Complete Image Solution

Normally the wide of the perimeter display is very long and the horizontal resolution is way over the limit of the monitor 3840dots, so the screen will be displayled in several separate windows. We have solution to make the screen display a complete image even if the pixels more than 30k or even more.



Application Fields

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as:
Perimeter Banner Screen Score Board
Live Feed Video Screen.


Item p4 P6.6 P8 P10
Pixel Pitch 4.44mm 6.67mm 8mm 10mm
Led Type SMD 3 In 1 SMD 3 In 1 SMD 3 In 1 SMD 3 In 1
Module Resolution 72dots x 72dots 48dots x 48dots 40dots x 40dots 32dots x 32dots
Module Pixels 5,184dots 2,304dots 1,600dots 1,024dots
Module Size 320mm x 320mm
Cabinet Size 1600mmx960mm
Cabinet Resolution 360dots x 216dots 240dots x 144dots 200dots x 120dots 160dots x 96dots
Pixel Density 50,625 dots/sqm 22,500 dots/sqm 15,625dots/sqm 10,000dots/sqm
Minimum Viewing Distance ≥5m ≥6m ≥8m ≥10m
Brightness 5,500nits ~ 7,000nits 5,500nits ~ 7,000nits 5,500nits ~ 7,000nits 5,500nits ~ 7,000nits
IP Grade IP65 | IP54 IP65 | IP54 IP65 | IP54 IP65 | IP54
Refresh Rate 1,920HZ ~ 3,840HZ 1,920HZ ~ 3,840HZ 1,920HZ ~ 3,840HZ 1,920HZ ~ 3,840HZ
Gray Scale 13bits ~ 24bits 13bits ~ 24bits 13bits ~ 24bits 13bits ~ 24bits
Viewing Angle H:160°/V:160° H:160°/V:160° H:160°/V:160° H:160°/V:160°
Maxmum Power Consumption 450W/sqm 450W/sqm 450W/sqm 450W/sqm
Average Power Consumption 150W/sqm 150W/sqm 150W/sqm 150W/sqm
Input Voltage AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ
Operating Temperature -20℃ ~ 65℃ -20℃ ~ 65℃ -20℃ ~ 65℃ -20℃ ~ 65℃
Operating Humidity 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90%
Cabinet Material Aluminum
Cabinet Weight 38kg/sqm
Operating System Windows(win7,Win8,Win10,etc)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
