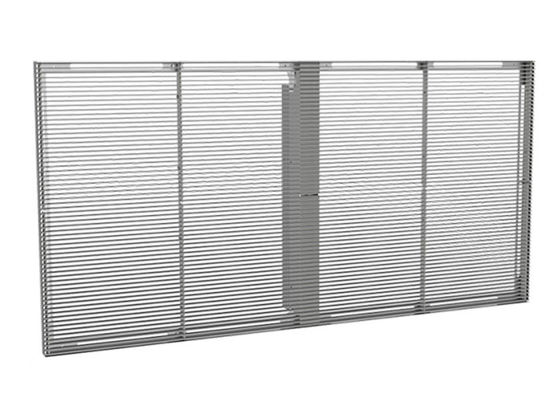

Dustproof HD Transparent LED Display High Brightness SMD1921 IP43

Product Details

Brand Name: AlisenLED

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Wooden Case

Delivery Time: 25 Working Days

Payment Terms: T/T

Get Best Price
Highlight:

Dustproof Transparent LED Display

,

Transparent LED Display IP43

,

HD LED Display SMD1921

Pixel Pitch:
1.9mm, 2.8mm, 3.9mm, 7.8mm
Module Size:
500mmx125mm
Screen Size:
1000mmx500mm
Brightness:
>4500 Nits
Waterproof:
IP43
Material:
Aluminum
Weight:
4.3 Kg/Panel
Pixel Pitch:
1.9mm, 2.8mm, 3.9mm, 7.8mm
Module Size:
500mmx125mm
Screen Size:
1000mmx500mm
Brightness:
>4500 Nits
Waterproof:
IP43
Material:
Aluminum
Weight:
4.3 Kg/Panel
Dustproof HD Transparent LED Display High Brightness SMD1921 IP43

Transparent Led Display High Brightness Quality Hd Full Color Led Transparent Building



High Transparency

Transparency of our T1 series transparent LED display is up to 52% or even 82%, which offers a range of creative applications for the live event and installation market.
Outdoor transparent LED screen is available, which has IP65 level of waterproof and dustproof. The pixel pitch is P3.9.

Dustproof HD Transparent LED Display High Brightness SMD1921 IP43 0

High Brightness

Its brightness of our transparent LED display products is up to 5000nits or even higher. So the display content will still look very clear even if in the sunlight. Using its excellent video performance to capture the audience's attention and bring them unforgettable visual experience.
Ecnmical and Eco-friendly
The power consumption is 1/3 lower than normal screen.

Dustproof HD Transparent LED Display High Brightness SMD1921 IP43 1

Light and Slim

80mm cabinet thickness and 4.3kgs weight make T1 lighter and thinner than most of other transparent LED displays in the market.
Standard & Customized Casbinet Design
Standard cabinet design 1,000mm x 500mm brings easier installation. Meanwhile, the customized design is available.



Modular Design

The modular power box and PCB make repair easy and replacement of spare parts cost-effective. The module PCB helps to control the flatness of the screen campared with the slide emitting LED PCB strip.



Fast and Easy Installation

Our transparent LED display comes with a wide range of accessories, connection locks, transport flight cases and hanging options. The fast lock assembly contributes to efficient handing, transportation and ease of installation.



Flexibility

Owning to high flexibility of cabinet and high density of pixel pitch, units may be multi-angle folded to satisfy creative HD design.



Application compatible with scenes



  • Conference
  • Exhibition
  • Training
  • Stage Performance
  • Office Work
  • Curved Wall
  • Curved Design
  • Round Shape




Item P1.9 P2.6 P2.9 P3.9
Pixel Pitch 1.953mm 2.604mm 2.976mm 3.906mm
Led Type SMD1515 SMD1515 SMD2020 SMD2020
Module Resolution 128dots x 128dots 96dots x 96dots 84dots x 84dots 64dots x 64dots
Driving Mode 1/32 Scan 1/32 Scan 1/28 Scan 1/16 Scan
Module Pixels 16,384 dots 9,216 dots 7,056 dots 4,096 dots
Module Size 250mm x 250mm 250mm x 250mm 250mm x 250mm 250mm x 250mm
Cabinet Size 500mm x 500mm 500mm x 500mm 500mm x 500mm 500mm x 500mm
Cabinet Resolution 256dots x 256dots 192dots x 192dots 168dots x 168dots 128dots x 128dots
Pixel Density 262,144 dots/sqm 147,456 dots/sqm 112,896 dots/sqm 65,536 dots/sqm
Minimum Viewing Distance ≥1.9 m ≥2.6 m ≥2.9 m ≥3.9 m
Brightness 800nits ~ 1200nits 800nits ~ 1200nits 800nits ~ 1200nits 800nits ~ 1200nits
IP Grade IP43 IP43 IP43 IP43
Refresh Rate 1,920HZ ~ 3840HZ 1,920HZ ~ 3840HZ 1,920HZ ~ 3840HZ 1,920HZ ~ 3840HZ
Gray Scale 14bits ~ 24bits 14bits ~ 24bits 14bits ~ 24bits 14bits ~ 24bits
Viewing Angle H:160°/ V:160° H:160°/ V:160° H:160°/ V:160° H:160°/ V:160°
Maxmum Power Consumption 560W/sqm 560W/sqm 560W/sqm 560W/sqm
Average Power Consumption 160W/sqm 160W/sqm 160W/sqm 160W/sqm
Input Voltage AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ AC110V ~ AC220V @50/60HZ
Operating Temperature -20℃ ~ 65℃ -20℃ ~ 65℃ -20℃ ~ 65℃ -20℃ ~ 65℃
Operating Humidity 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90%
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight 7.5 kg/panel 7.5 kg/panel 7.5 kg/panel 7.5 kg/panel
Operating System Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc) Windows(win7,Win8,Win10,etc)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
