MOQ: | Negotiable |
Price: | Negotiable |
Standard Packaging: | WoodenCase |
Payment Method: | T/T |

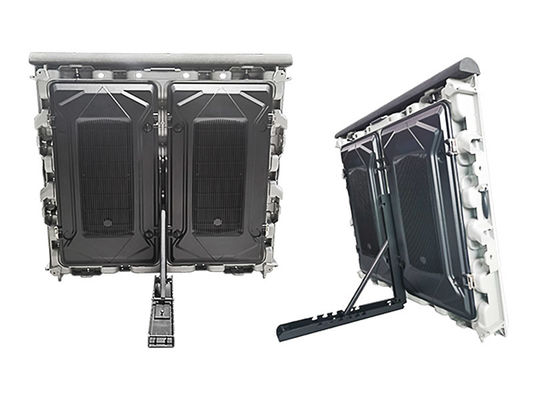

Perimeter led screen has soft plastic screen in the stadium by accident. It has a back supporting stand for adjusting the screen to different viewing angle. The Solid Strong Cabinet Design for all weather.
Since we use high-quality SMD LED and excellent PCB design, the perimeter led screen can bring you the HD picture performance indoors or outdoors. The pixel pitches are P6.6, P8 and P10.
The high Brightness - even under the scorching sun, the audience can clearly see the match score and the sponsorship advertisenment.
It's 160 degrees wide viewing angle and up to 24bits grey scale of this screen can bring an excellent visiual experience to the audience present.
Stadium led screen adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environment.
Perimeter led screen can be also used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.
RCD protect the system against short circuits, overcurrent and leakage currents which makes the system absolutely safe to operate.
Our perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums. The Viewing angle of our sports LED display can be up to 160°
High Brightness > 7000nits
High Grey Scale 65536 levels
High Refresh Rate; 2880HZ
High Contrast: 5000:1
On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors.
It is always used in the stadium as:
Item | P6.6 | P8 |
---|---|---|
Pixel Pitch | 6.67mm | 8mm |
Led Type | SMD2727 | SMD3535 |
Module Resolution | 32dots x 32dots | 32dots x 16dots / 40dots x 20dots |
Driving Mode | 1/6 Scan | 1/4 scan | 1/5 scan |
Module Pixels | 1,024dots | 512dots | 800dots |
Module Size | 192mm x 192mm | 256mm x 128mm | 320mm x 160mm |
Cabinet Size | 1,152mm x 768mm | 1,024mm x 768mm | 960mm x 960mm |
Cabinet Resolution | 192dots x 128dots | 128dots x 96dots or 120dots x 120dots |
Pixel Density | 27,777.777dots/sqm | 15,625dots/sqm |
Minimum Viewing Distance | ≥6m | ≥8m |
Brightness | 6,000nits ~ 10,000nits | 5,500nits ~ 7,000nits |
IP Grade | IP65 | IP65 |
Refresh Rate | 1,920HZ ~ 3,840HZ | 1,920HZ ~ 3,840HZ |
Gray Scale | 13bits ~ 24bits | 13bits ~ 24bits |
Viewing Angle | H:160°/V:160° | H:160°/V:160° |
Maxmum Power Consumption | 800W/sqm | 800W/sqm |
Average Power Consumption | 230W/sqm | 230W/sqm |
Input Voltage | AC110V ~ AC220V @50/60HZ | AC110V ~ AC220V @50/60HZ |
Operating Temperature | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
Operating Humidity | 10% ~ 90% | 10% ~ 90% |
Cabinet Material | Magnalium aluminum alloy | Magnalium aluminum alloy |
Cabinet Weight | 42kg/panel | 42kg/panel |
Operating System | Windows(win7,Win8,Win10,etc) | Windows(win7,Win8,Win10,etc) |
Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc |
